Description

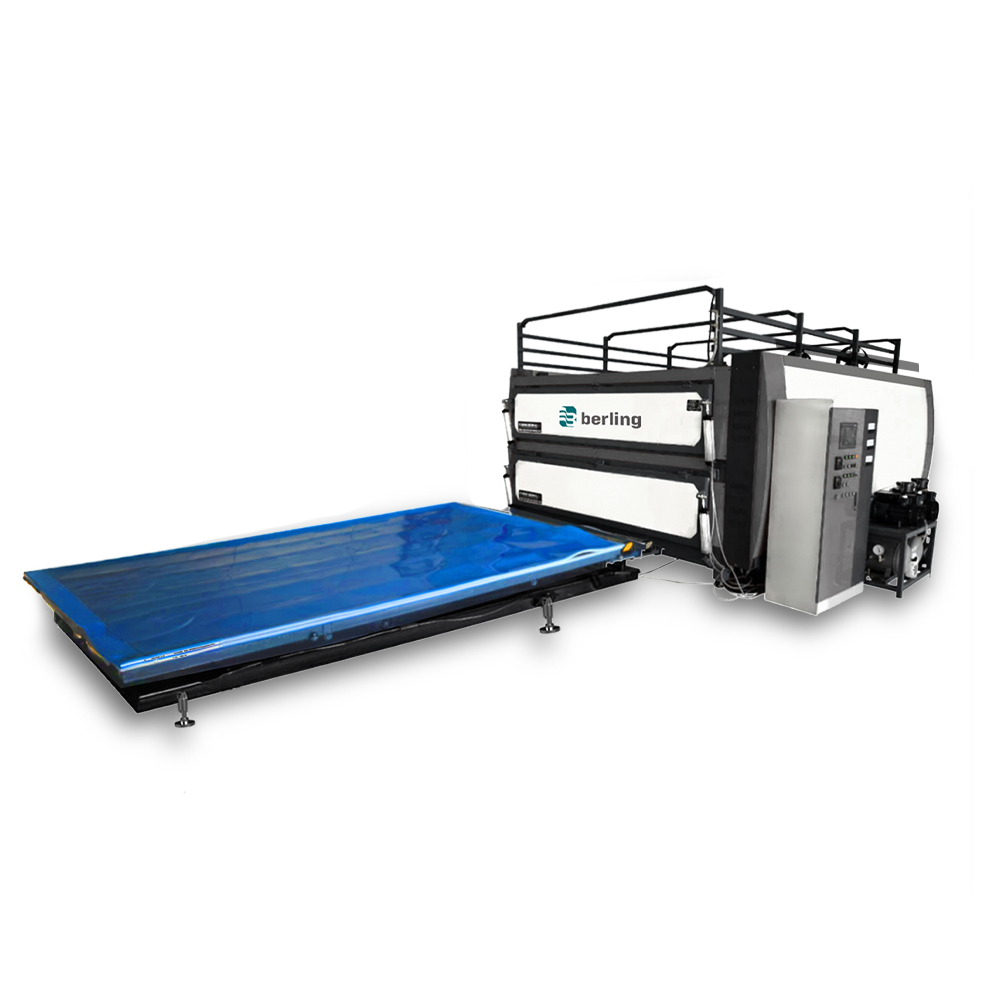

Four-Layer, Double Circulation EVA Laminated Glass Machine
The machine have 2 operation systems, can laminate different kinds of glass with different parameters at the same time, realize cycle work, reduce costs and and increase efficiency.
Technical features
- The machine have 2 operation systems, can laminate different kinds of glass with different parameters at the same time, realize cycle work, reduce costs and and increase efficiency.
- Multi-layer independent heating and modular area heating control, make the machine has fast heating speed, high efficiency and small temperature difference.
- The machine adopts PLC control system and the new humanized Ul interface, the whole process of machine status can be visualized, and all procedures can be completed automatically.
- New upgraded design, the lifting platform has a one-button lifting function, and the full-load glass lifts without deformation and rebound
Model Glass size Control system Floor space Power Process time Output BLG2030 2200x3200mm Siemens PLC 4000x9500mm 45KW 40-120min 84m2 BLG2638 2440x3660mm Siemens PLC 4500x10500mm 58KW 40-120min 108m2 BLG2650 2500x4500mm Siemens PLC 4500x11300mm 68KW 40-120min 134m2
