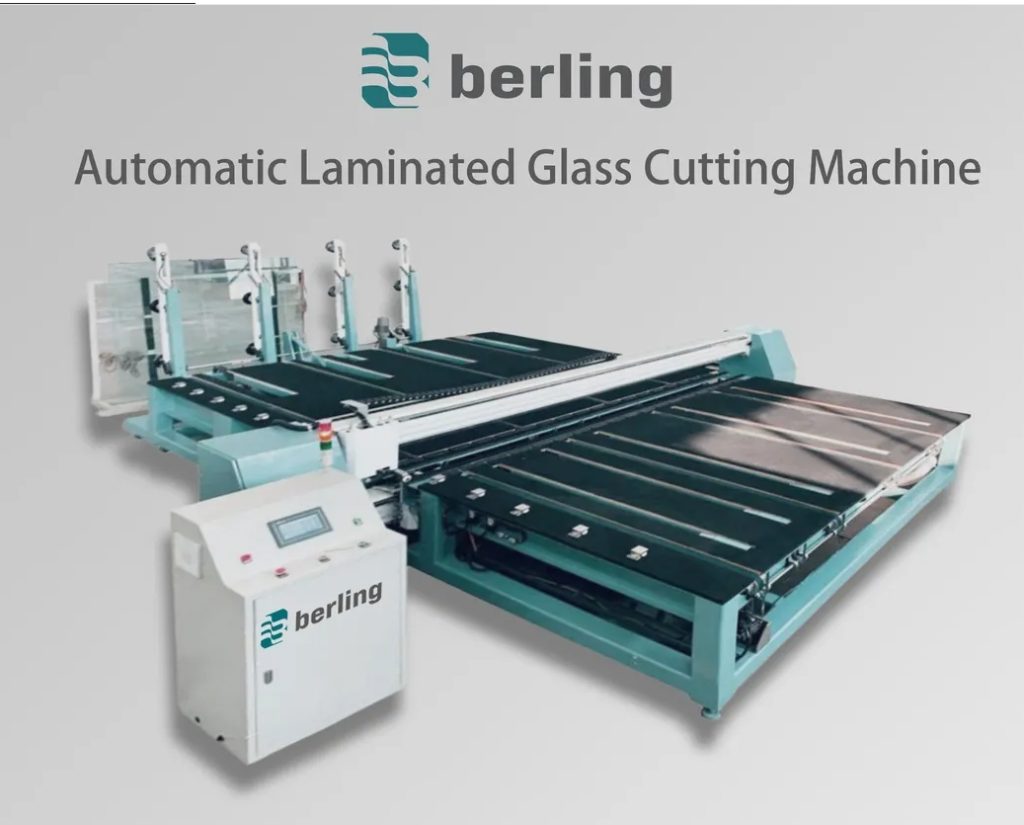

High Precision Automatic Laminated Glass Cutting Machine with Air Float System & Dual-Layer Cutting Technology
Enhance your laminated glass production capabilities with our advanced automatic cutting solution. This machine integrates precise positioning, dual-layer synchronous cutting, and intelligent heating technology to deliver superior performance for modern glass processing operations.
Superior Frame Construction for Maximum Stability.
The frame is welded using international standard square steel tubes and boxed iron, with critical components undergoing annealing treatment and gantry milling. This robust construction ensures exceptional structural stability and strength, maintaining consistent precision even during continuous full-load operation. Equipped with multiple safety protection devices including emergency stop button, overload protection, and safety sensors.
Two-Stage Intelligent Structure
The machine adopts an optimized two-stage assembly structure:
- First stage: Manual auxiliary feeding and transmission section equipped with an automatic positioning system for precise glass alignment
- Second stage: Integrated upper and lower blade cutting system, film cutting system, heating system, and auxiliary feeding system
This configuration completes dual-layer cutting in a single operation cycle, maximizing production efficiency.
Advanced Air Float System
The cutting table integrates over one hundred evenly distributed air holes to create a stable air cushion. This innovative system allows operators to move glass panels effortlessly while preventing surface damage and significantly reducing physical fatigue.
Technical Specifications
The product series includes multiple models with main parameters as follows:
- Glass thickness range: 3-19mm
- Maximum cutting speed: 120 m/min
- Control system: PLC with Delta servo drives
- Power supply: 380V/50Hz, 11.8kW
- Cutting frequency: Dual-layer cutting completed in one action
- Standard functions: Adjustable heating temperature and time, adjustable breaking pressure, three-in-one integrated structure, self-design programming capability
- Workbench height: 820mm
(Detailed dimensional specifications and maximum processing sizes vary by model; please consult us for specific parameters)
Application Fields
Suitable for processing architectural curtain walls, automotive glass, decorative interior glass, and photovoltaic panels.
Production Capacity: 100 units/month for fast delivery guarantee.
Brand: Berling, Made in China.
Contact us immediately for customized cutting solutions and on-site trial cutting services. This advanced equipment serves as a reliable efficiency engine for your production line.
